Ürün No: BE2004



Açık akış oranı: 126 Litre/dak

Akış oranı @1metre: 104 Litre/dak

Maksimum atış mesafe: 4 metre

Voltaj: 24 Volt

Akım tüketimi: 7,5 amper

Kablo kesiti: 1.5mm²

Ağırlık: 1,32 kg

Hortum bağlantı çapı: 28mm

Yükseklik: 165mm

Genişlik: 144mm

Derinlik (çap):121mm



-----------------------------

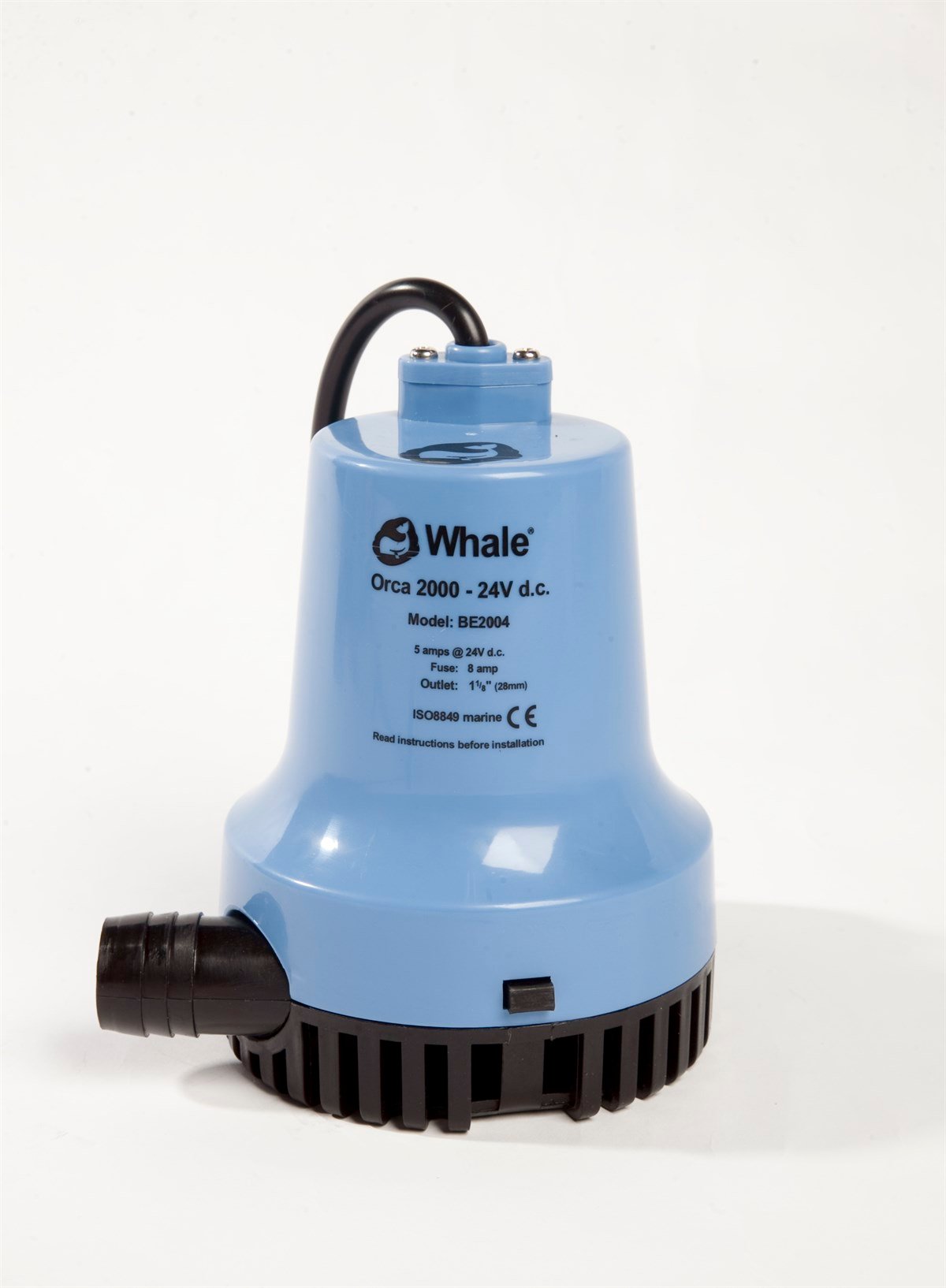

Whale ORCA Series 2000 - 24V Electric Bilge Pump

Compact, Powerful and Automatic Electric submersible bilge pump with wide product range. A separate bilge floater is required.



Superior Advantages;

• Easy installation
• Longer life battery with low energy consumption
• Easy to maintain thanks to easy access to motor and filter area
• Smooth adaptation to compact bilge areas
• Five different capacity alternatives
• CE and NMEA approved



MODEL ORCA 2000-24

Product Number: BE2004



Open flow rate: 126 ltrs/min (2000 US GPH)
Flow rate at 1 meter: 104 ltrs/min (1650 US GPH)
Maximum discharge head: 4m (13ft)
Voltage: 24V d.c
Current consumption: 15 amps
Cable cross section:  1.5mm² (16AWG)
Weight: 1.32kg (2.9lbs)
Hose connection diameter: 28mm (1^1/8'')
Height: 165mm
Width: 144mm
Depth (diameter): 121mm
